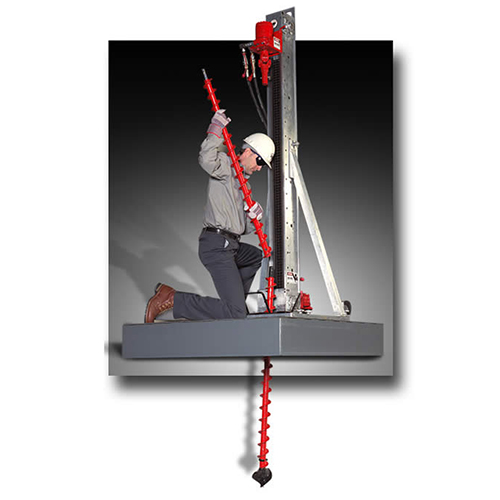

The Arch•Master is the ideal silo and bin cleaning solution for material that tends to “arch” or “bridge” across the whole vessel.

This tough, portable, miniaturized rock drill was designed to create flow channels (up to 150’ or 45m deep) in arched or bridged material. In some cases, this may be all that is required. In other instances, the Junior 360º™ may be required.

Perfect for DIY cleanout projects involving bridged materials, the Arch•Master is the optimum choice for a fast and safe return to full material flow.


Features and Benefits:

  • High-torque, variable speed power head for rapidly drilling even the hardest material
  • Overall height 7’4” (2.3 m) to accommodate low head-room clearance
  • Quick-connect hydraulic fittings
  • Double-roller chain drive
  • Heavy-duty 3” to 6” (7.6 – 15.2 cm) augers to penetrate any material
  • Specialty bits available for any application
  • Standard drilling depth 150’ (46 m)
  • Special duty hydraulic motor for variable speed drilling
  • Quick-connect hydraulic fittings
  • All aluminum construction eliminates sparking (steel bodies also available where necessary)
  • Versatile and strong
  • A safe way to unlock bridged material
