How to Choose the Right Size

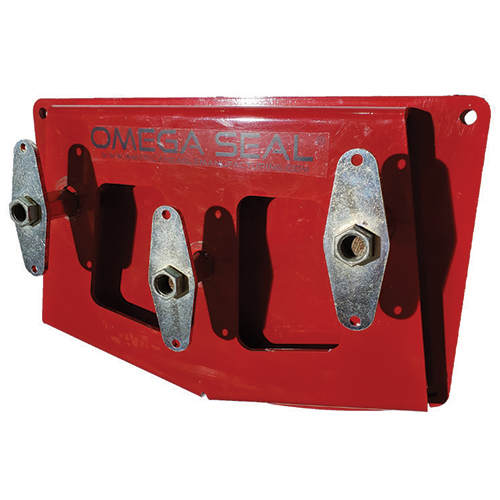

When choosing the clamp size always make sure you choose the size that best ﬁts the chute width. If your chute is in between the standard sizes always default to the next lower size. Then choose the troughing degree. This choice is not based on the troughing rollers on the conveyor. It is based on the transition into the chute. Most load zones have 35 degree toughing rollers but depending on the transition of the belt from the tail pulley into the chute it may be best to use a 20 degree.
